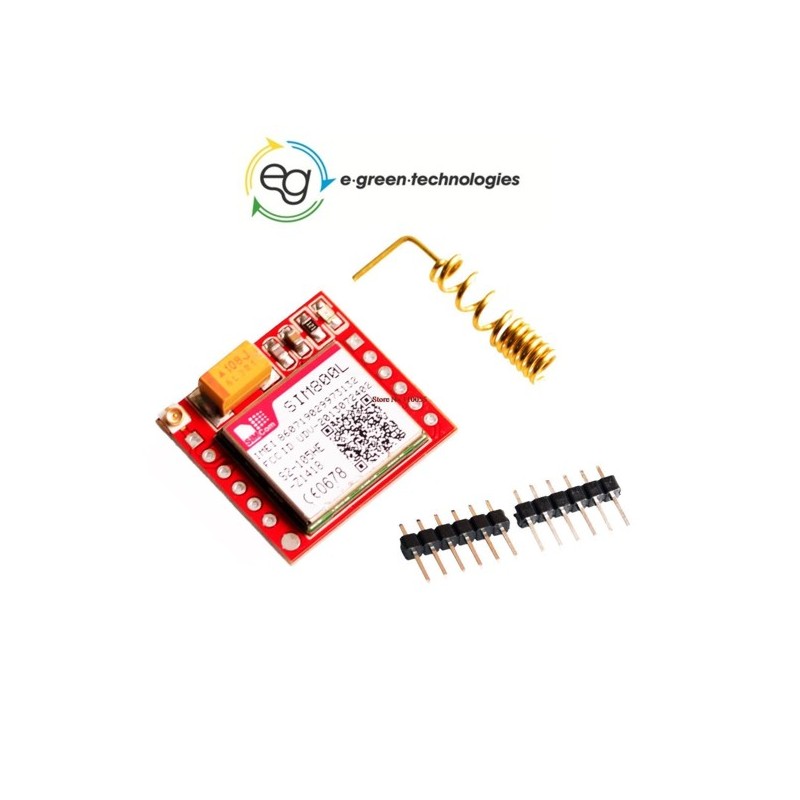

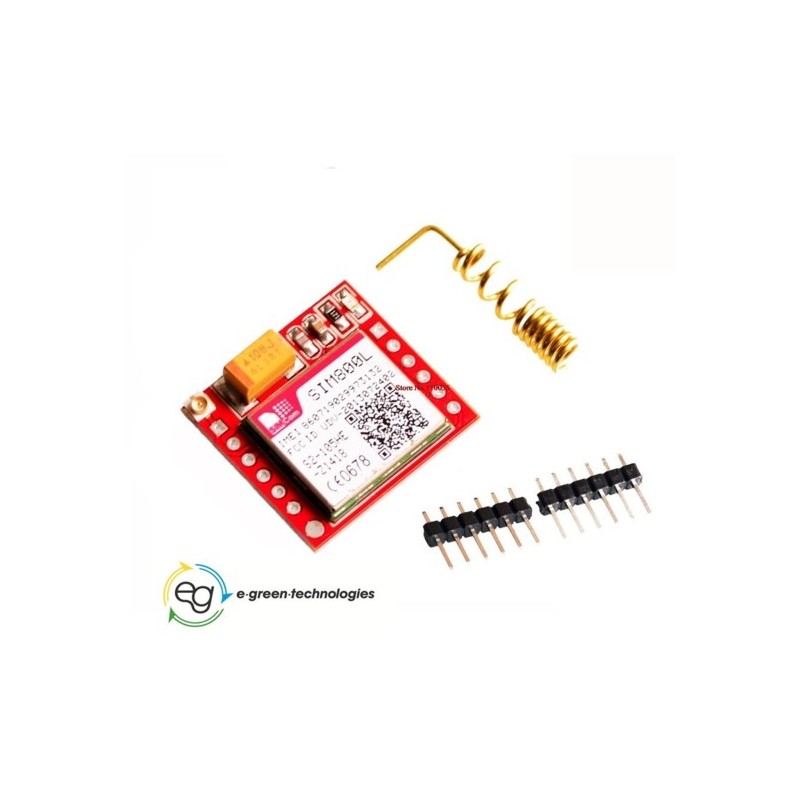

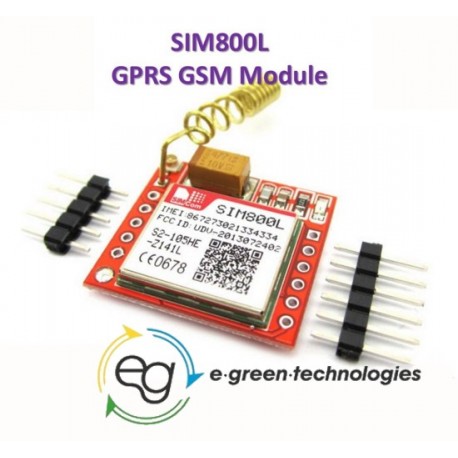

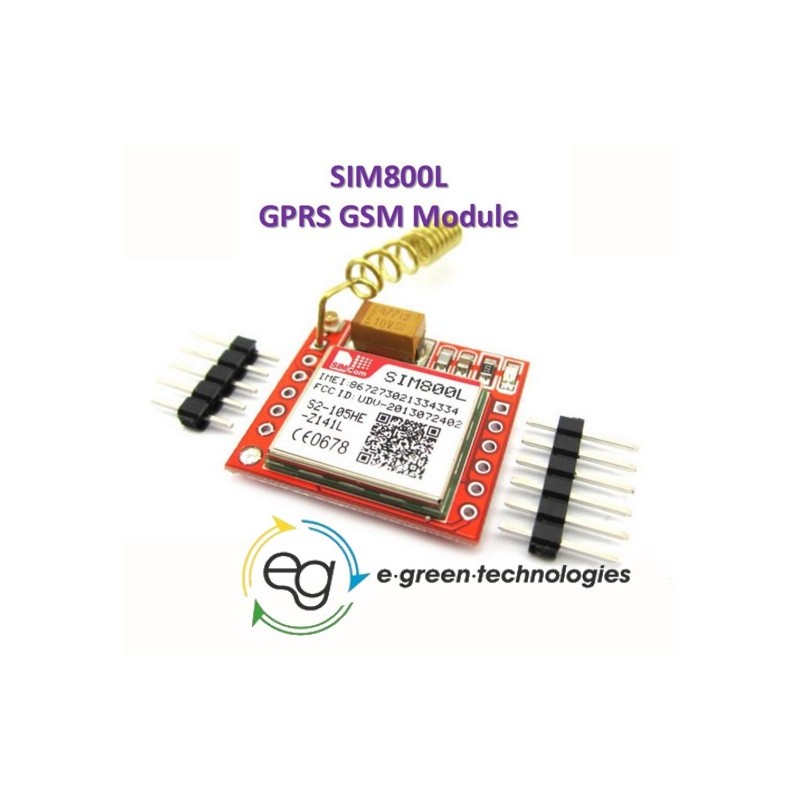

MODULO SIM800L GPRS GSM ANTENNA PCB

MODULO SIM800L GPRS GSM ANTENNA PCB

Il Modulo SIM800L supporta la rete QUAD BAND GSM/GPRS, è predisposto alla trasmissione GPRS e alla trasmissione di SMS. La SIM 800L comunica con il microcontrollore attraverso la portaUART, supporta i comandi AT avanzati inclusi: 3GPP TS 27.007, 27.005.

Il modulo è costruito in modo da utilizza tensiopni più alte che quella di 2,8 v di default, inoltre supporta la tcnica A-GPS  di posizionamento, quindi puo essere utilizzato come tracker.

Il modulo SIM800L può essere direttamente alimentato dall'uscita vcc 5V di Arduino

SIM800L GPRS GSM Module Micro SIM Card Core Board Quad-Band

TTL Serial Port

The SIM800L module supports quad-band GSM/GPRS network, available for GPRS and SMS message data remote transmission. The SIM800L communicates with microcontroller via UART port, supports command including 3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands. It also has built-in level translation, so it can work with microcontroller of higher voltage than 2.8V default. Besides, the board also supports A-GPS technique which is called mobile positioning and gets position by mobile network. This features make it can also be a tracker module.

Features of SIM800L GPRS GSM Module MicroSIM Card Core BOard Quad-band TTL Serial Port:

Quad-band 850/900/1800/1900MHz

GPRS multi-slot class12 connectivity: max. 85.6kbps(down-load/up-load)

GPRS mobile station class B

Controlled by AT Command (3GPP TS 27.007, 27.005 and SIMCOM enhanced AT Commands)

Supports Real Time Clock

Supply voltage range 3.4V ~ 4.4V

Supports A-GPS

Supports 3.0V to 5.0V logic level

Low power consumption, 1mA in sleep mode

Compact size 23mm x 35mm x 5.6mm

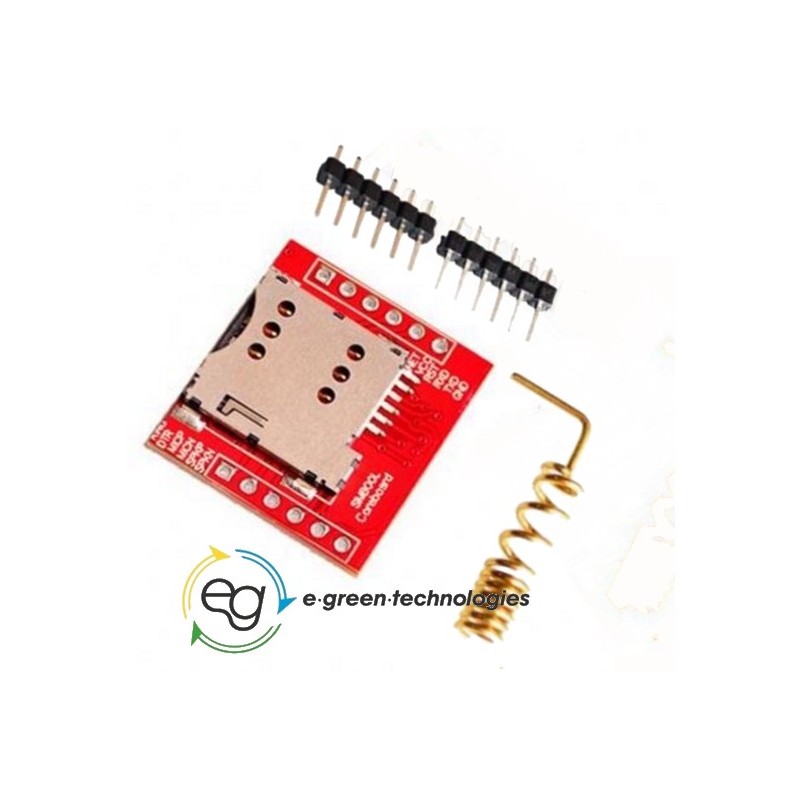

Micro SIM Card

Applications of SIM800L GPRS GSM Module Micro SIM Card Core Board Quad-band TTL Serial Port:

It is used in GSM based projects.

It is used in GPS based projects.

It is used in Robotics projects.

It used in 8051/AVR/ARM/PIC/Arduino/Raspberry-pi based projects.

Description:

Chip: WS2812 (built-in LED)

LED: 5050 RGB full color highlight package

Voltage: 4 to 6,5V ( 5V Typical )

SIZE: 53*9 mm

Net weight: 3 g

Package Included:

1 x  SIM800L GPRS GSM Module
