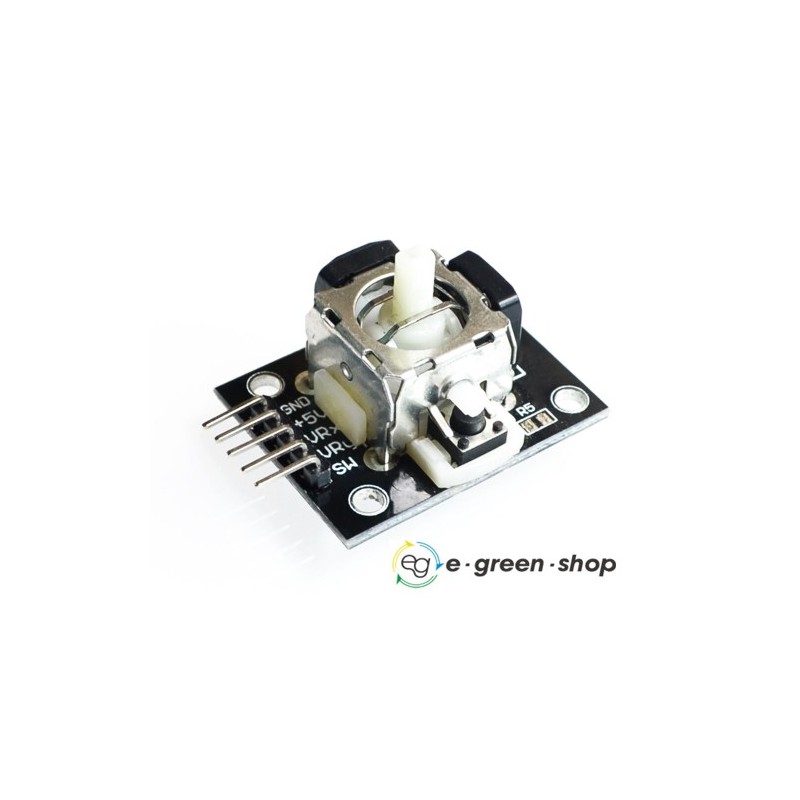

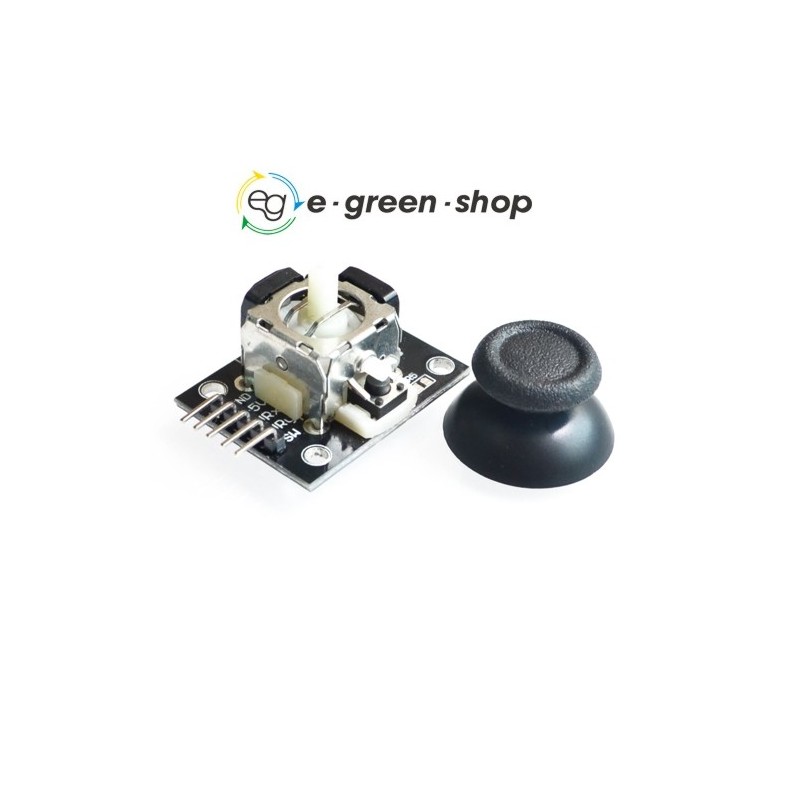

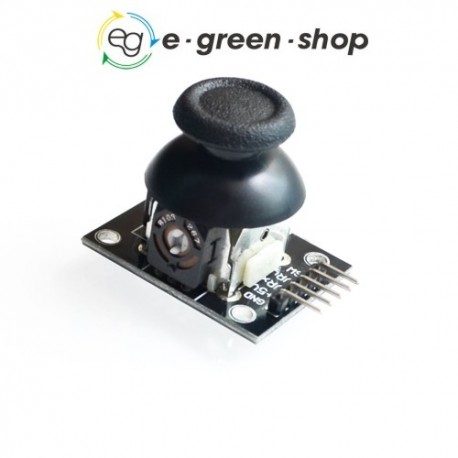

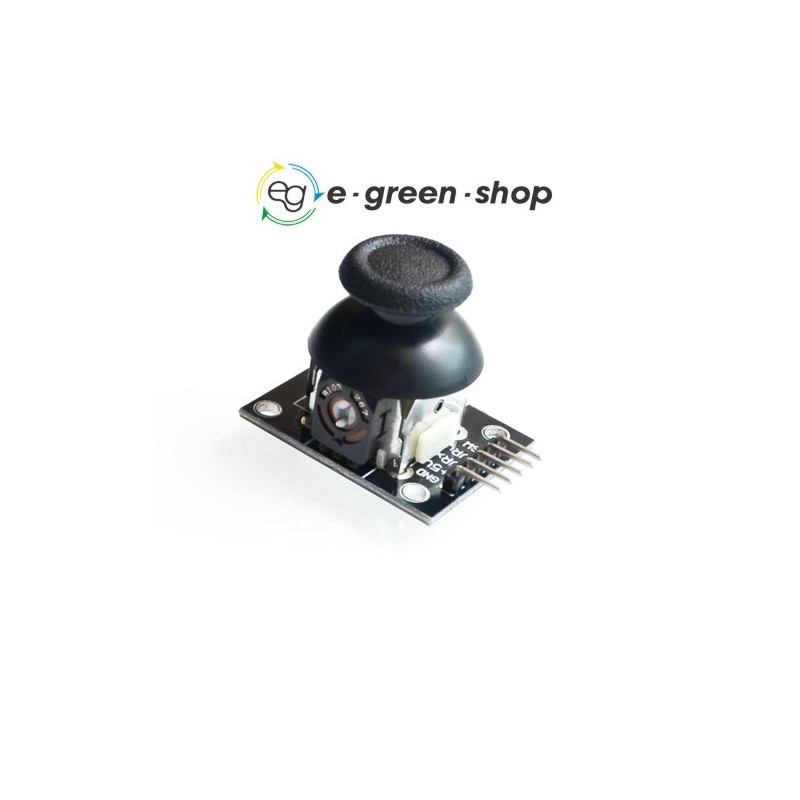

MODULO JOYSTCK 2 ASSI XY PER PS2 - ARDUINO

MODULO JOYSTCK 2 ASSI XY PER PS2 ARDUINO

Caratteristiche :

- Joystick analogico resistivo due assi X-Y con pulsante
- Alimentazione a 5V
- Potenziometri 10Kohm
- Uscite X e Y presentano 2,5V (a riposo)
- Variazione 0V - 5V in relazione al movimento pad
- Pulsante in chiusura verso GND (necessita resistenza di pull-up verso il positivo)

peso 12g

Dual-axis XY Joystick Module For Arduino ps2 Joystick Module

description:

                                                                                                                      This Thumb Joystick is similar to the 'analog' joystick on PS2 (PlayStation 2) controllers. The X and Y axes are two ~10k potentiometers which control 2D movement by generating analog signals. The joystick also has a push button that could be used for special applications.     When the module works, it outputs two analog values and a digital value. The 2 analog outputs represent the location of the two potentiometers and the digital output represents if the button has been pressed.
